FUNAI LH7 M22B LCD TV – SERVICE MODE, PURITY CHECK MODE, FULL SCHEMATIC ELECTRIC DIAGRAM

 Funai 22″ COLOR LCD TELEVISION LH7-M22BB

This is for the LH7-M22BB (A9372EP) model.
For the LH7-M22BB (A9372EP) model, the letter (A9372EP) is printed on the Serial Number Label on the back of the unit. Refer to the Serial Number.


Serial number label

Electrical adjustments

Electrical adjustments are required after replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed.  Also, do not attempt these adjustments unless the proper equipment is available.

Service mode

To enter into the service mode, you have to make a service remote control, out of supplied remote control.

How to make the Service remote control unit.

Cut “A” portion of the attached remote control unit as shown in Fig.


How to set up the service mode.

Use the service remote control unit.
2. Turn the power on.
3. Press the service button on the service remote control unit as shown.

Purity Check Mode

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.
1. Enter the Service mode.
2. Each time pressing [7] button on the service remote control unit, the display changes as follows.


When entering this mode, the default setting is White mode”

VCOM Adjustment

Operate the unit for more than 20 minutes.
2. Set the color analyzer and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above.
Note: The optical receptor must be set perpendicularly to the LCD Panel surface.
3. Enter the Service mode.
4. Press [3] button on the service remote control unit.
5. Press [P- UP / DN ] buttons on the service remote control unit so that the color analyzer value becomes minimum.


Auto Calibration [Component]
Purpose: To bring the color adjustment of each component into standard alignment.
Symptom of Maladjustment: If this adjustment is incorrect, component signals do not reproduce the corresponding color.
1. Input 720P 100% Color Bar signal.
2. Enter the service mode.
3. To enter the Auto Calibration adjustment mode, press [6] button on the service remote control unit.
4. To start auto adjustment, press [P-UP ] button on the service remote control unit.
- In the auto adjustment mode, “Calibration Check” appears on the screen.
- Upon completion, “OK” appears on the screen.

Auto Calibration [PC]
Purpose: To bring the color adjustment of PC into standard alignment.
Symptom of Misadjustment: If this adjustment is incorrect, PC signals do not reproduce the corresponding color.
1. Input SVGA 100% White signal.
2. Enter the service mode.
3. To enter the Auto Calibration adjustment mode, press [5] button on the service remote control unit.
4. To start auto adjustment, press [P-UP ] button on the service remote control unit.
- In the auto adjustment mode, “Calibration Check” appears on the screen.
- Upon completion, “OK” appears on the screen.

The following adjustment normally are not attempted in the field. Only when replacing the LCD Panel then adjust as a preparation.

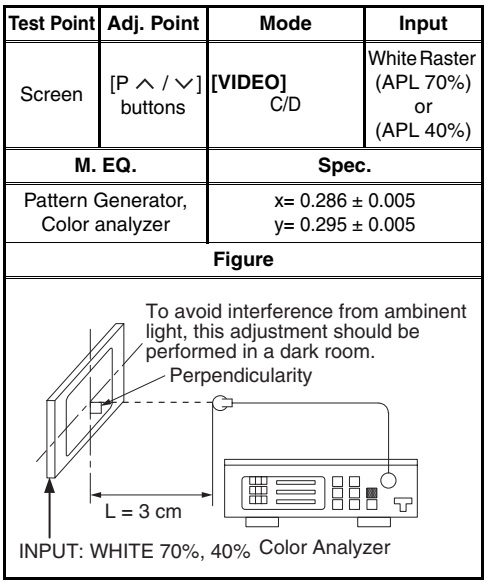

White Balance Adjustment [Video/Component/PC]
Purpose: To mix red, green and blue beams correctly for pure white.
Symptom of Maladjustment: White becomes bluish or reddish.

1. Operate the unit for more than 20 minutes.
2. [VIDEO input]
Input the White Raster (70%=70IRE, 40%=40IRE).
[Component input]
Input the 720P White Raster (70%=70IRE, 40%=40IRE).
[PC input]
Input the SVGA White Raster (70%=70IRE, 40%=40IRE).

3. Set the color analyzer to the CHROMA mode and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown below.
Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [Vol -] button on the service remote control unit and select “C/D” mode.
5.
[CUTOFF]
Press [3] button to select “COB” for Blue Cutoff adjustment. Press [1] button to select “COR” for Red Cutoff adjustment.
[DRIVE]
Press [6] button to select “DB” for Blue Drive adjustment. Press [4] button to select “DR” for Red Drive adjustment.
6. In each color mode, press [P-UP / DN ] buttons to adjust the values of color.
7. Adjust Cutoff and Drive so that the color temperature becomes 9200°K (x= 0.286 / y= 0.295 ±0.005).
8. Change the video signal input in step 2 and repeat from step 3.

HOW TO INITIALIZE THE LCD TELEVISION

1. Turn the power on.
2. To enter the service mode, press the service button on the service remote control unit.
- To cancel the service mode, Press [POWER ] button on the remote control unit.
3. Press [ i ] button on the service remote control unit to initialize the LCD television.
4. "INITIALIZED" will appear in the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is complete.

Schematic diagrams


















Wiring diagram
