Thursday, 31 January 2019

SONY KLV32V530A, KLV40V550A, KLV46V550A, KLV52V550A – LCD TVS – HOW TO ENTER SERVICE MODE, LED BLINKING CODES – SMPS SCHEMATIC

Sony KLV32V530A, KLV40V550A, KLV46V550A, KLV52V550A – LCD TVs – How to enter service mode, LED blinking codes – SMPS schematic

KLV-40V550A RM-GA015 - India, Iran, ME, Philippines, Russia, South Africa, Thailand, Tunisia
KLV-40V550A/R RM-GA015 - ME, Philippines, (Red) Thailand, South Africa
KLV-40V550A/W RM-GA015 - ME, Philippines, (White) Thailand, South Africa
KLV-46V550A RM-GA015 - India, ME, Philippines, Russia, South Africa, Thailand
KLV-52V550A RM-GA015 - India, Iran. ME, Philippines, Russia, South Africa, Thailand, Tunisia
KLV-32V550A/R RM-GA015 - ME, Philippines,
KLV-32V530A KLV-32V550A RM-GA015 - ME
RM-GA015 - India, ME, Philippines, Russia, South Africa, Thailand, Tunisia

SERVICE ADJUSTMENTS

Viewing Service Adjustment Data

There are no adjustments necessary for these models. All data have been set for optical viewing for customers.

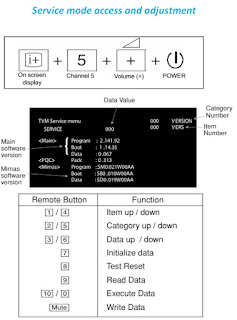

Accessing Service Adjustment Mode

1. While TV on standby, press the following sequence on the remote commander

[i] (On screen display) +[ 5 ] + (Volume [+]) + Power

The following menu appears on the screen.

Use the following buttons on the remote commander to access the service menu:

To reset to factory default, press [8] > [Mute] > [0]

To exit, turn off and on the TV set.
