Tuesday, 19 February 2019

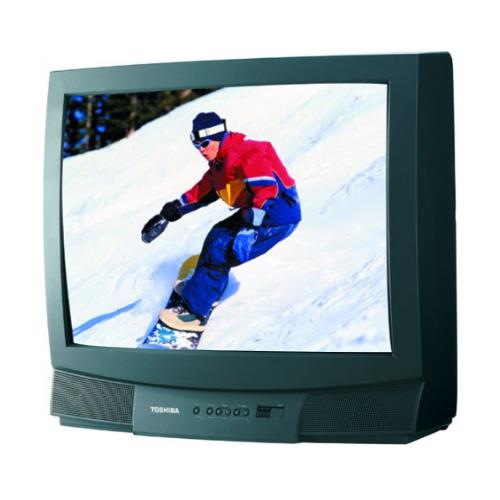

TOSHIBA - 27A30 SERVICE MODE SETTINGS - ADJUSTING DATA.

TOSHIBA - 27A30 SERVICE MODE SETTINGS - ADJUSTING DATA.

TO ENTER SERVICE MODE
  • Press 'Mute' button once on the remote control.
  • Press 'Mute' button again to keep pressing
  • While pressing the 'Mute' button, press 'Menu' button on the 'TV' set.
  • Service mode window will be displayed with 'S' on the screen.
  • Press 'Menu' button on the 'TV' to select.
  • To "Exit' service mode, press, press 'Power' button to turn OFF the TV once.
KEY FUNCTION IN THE SERVICE MODE

A single horizontal line
TV 9ANT) / Video button on the TV
Test signal selection
TV(ANT) / Video button [on the remote]
Selection of adjustment items
Channel Up / Dn button on the remote.
Change of data value.
Volume Up / Dn button on the remote.
Adjustment menu mode On/Off
Menu button on the TV.
Initialization of the memory (QA02)
Recall + Channel Up button on the ‘TV’
Initialization of the self diagnostic data
Recall + Channel dn button on the ‘TV’


R-cut selection
1 button
G cut selection
2 button
B cut selection
3 button
CNTX selection
4 button
COLC selection
5 button
TNTC selection
6 button
Test audio signal On/Off [ikHz]
8 button
Self diagnostic display On/Off
9 button
INITIALIZATION OF MEMORY DATA OF QA02
  • After replacing QA02, the following initiation is required.

TEST SIGNAL SELECTION
  1. Every pressing of TV/Video button on the remote control in Service Mode changes the built-in test patterns.
  2. Press [8] button while any built-in test pattern to on the screen to output the 1kHz sound.  Press the button again to cut off the sound.  If the video cable is connected to the Video-1 input jack, the test pattern signals are not displayed.
Test Patterns order:  NORMAL PICTURE > RED RASTER > GREEN RASTER > BLUE RASTER > ALL BLACK > ALL WHITE > WHITE & BLACK > BLACK CROSS BAR > WHITE CROSSBAR > BLACK CROSS HATCH > WHITE CROSS HATCH > BLACK CROSS DOT > WHITE CROSS DOT > <
  1. Enter the 'Service Mode'.
  2. Press and Hold 'Recall' button on the remote, and then press 'Channel Up button on the 'TV'.
  3. Check the picture carefully.  If necessary adjust any adjustment item/s.  Perform 'Programming Channel Memory" on the owners' manual.
  4. NEVER attempt to initialize the data, unless QA02 has been replaced.
