SHARP LC-32LE240M HOW TO ENTER SERVICE MODE - SHARP LC-32LE240M - LED LCD TV

HOW TO ENTER SERVICE MODE - SHARP LC-32LE240M - LED LCD TV

Applicable to SHARP LC-32LE240M/340M (For Asia, Indonesia, Vietnam, Thailand, Middle East)
LC-32LE240M/340M (For Philippines) [NTSC]
ADJUSTMENT MODE [SERVICE MODE]
Entering and cancel the adjustment process mode
*  While holding down the TV/VIDEO and Volume DOWN keys at the same time, plug in the AC cord to turn on the power. (“K” standing for inspection process mode is displayed on the upper left position of the screen.)
* Press the Channel DOWN and Volume DOWN keys at the same time. (The adjustment process mode screen appears.)
* To cancel it, turn off the power using the Power switch or remote control.
Remote controller key operation and description of display in adjustment process mode.
CLICK ON THE PICTURES TO ZOOM IN
Software upgrading.
Main Software Package.
1) Plug off the LCD TV.
2) Insert the USB device to the USB terminal at the LCD TV. (Make sure that the latest software is installed in the USB device).
3) Hold the LCD TV power key and plug on the LCD TV.
4) LCD TV is on and detecting the USB device.
5) A few seconds later, the software upgrading will start automatically.
6) Let the process running & entering verification.
7) Software is successfully installed when the following appears at the end of the process.
8) Plug off the LCD TV and plug ON again as usual.
9) LCD TV is running with the latest software.

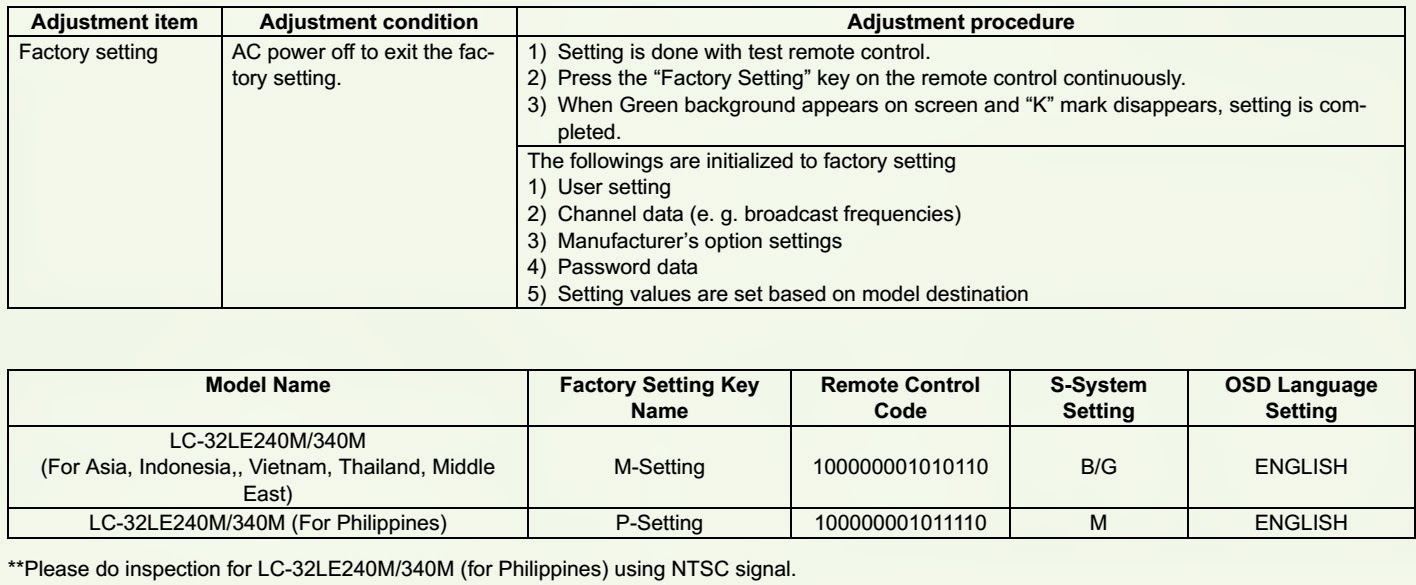

Factory setting
AC power is plug off after shipment setting is done.
CAUTION: Do not plug on again after shipment setting is done. If do, please re-do the shipment setting. Do not off with remote control.
USB Clone (Smart Loader)
The Smart Loader is a function implemented in the service software to easily replicate the user settings of one TV into another. These settings include (but not restricted to): picture and audio, turning set-up, language and country selection, PIN, child locked programs etc.  Factory adjustments are not copied as they are different for every TV.
The Smart Loader makes possible the user data to be stored in a memory device connected to the USB terminal of the TV that is used as reference and later load those data into other TVs by using their respective USB terminal.
* Enter USB clone menu (Smart Loader)
* Press panel key [TV/VIDEO] and [VOL+] and AC on, it will go to password entry OSD.
* Enter digit “369” then it will go to Smart Loader Menu.
Smart Loader function
SMLD Store
To copy all related data from TV > USB and put under a fixed filename “SHP_SMLD.bin” (8kB).
SMLD Restore
To restore the related data from USB > TV.
SMLD Store and Restore execution
To execute SMLD Store or SMLD Restore, highlight at selected item and press Enter.
When copying is in process, “WAIT” is displayed.
After cloning process is done, “OK” is displayed.
If cloning process is not finished due to error (e.g. no pen drive detected), “NG” is displayed.
Exit USB Clone menu (Smart Loader)
To exit Smart Loader menu, plug off AC Cord.
EDID DATA INPUT
