Technical description and composition of the HYUNDAI H-LED22V5 TV, panel type and applicable modules. The composition of the modules.
HYUNDAI LED
Model: H-LED22V5
Chassis / Version: see ruby RB-23SL1F
Panel: LM215WF4
LED driver (backlight): CT-02UL
Power Supply (PSU): K-40L1
PWM Power: OB5269CP
MainBoard: MST6M182VG-T7S
IC MainBoard: SA7454, IT6633F-P, TE330C, MP14820S, YD1517P, 25Q32
Tuner: KTDANW-14-09
Technical Specifications H-LED22V5
HYUNDAI H-LED22V5
General repair guidelines for TV LCD LED
It is advisable to start the repair of the HYUNDAI H-LED22V5 TV with a careful external examination of both internal and external elements. Many visible changes in the state of the elements make it possible to determine the further direction of troubleshooting and localization of the defect. Elements with visible damage, for example, capacitors swelled up after boiling the electrolyte, charred resistors in certain nodes of the circuit, as well as ring cracks in solders will help the master to guess the causes and possible consequences of the malfunction.
In the absence of any signs of operability, when the HYUNDAI H-LED22V5 does not turn on and does not signal anything with the control lights on the panel, there is a possibility of a malfunction of the TV power module. With the same manifestations, the power regulator of the control processor on the motherboard may be faulty. When repairing the power supply, it is advisable to start the diagnostics by checking the mains fuse and the electrolytic capacitors of the filters of the converter secondary rectifiers. In the event of a fuse breaking, the reason should be sought in the power semiconductor elements of the pulse converter of the main power supply. First of all, it is necessary to check the diodes of the rectifier bridge of the mains voltage and the power switch (s) of the converter.
Mos-Fet keys used in switching power supplies (SMPS) rarely fail for no reason to look for when checking other circuit elements. Often the breakdown is caused by malfunctions of electrolytic capacitors or semiconductor elements in the primary circuit, or by a break in the resistors in the stabilization circuits. The PWM controller chip can also cause a breakdown of the power switch of the converter.
If there is no image when you turn on the HYUNDAI H-LED22V5, or it appears for a second and disappears, but there is sound, most likely a malfunction in the circuit of the panel backlight LEDs, or in the power converter. It is necessary to check the electrolytic capacitors of the filter of the secondary rectifiers in the general power supply unit.
Often there is a need for disassembling the panel to check the health of the LEDs, as well as contact connections in the connectors and soldering.
When trying to detect a break in the LED lines, it should be taken into account that it is difficult to do this without disassembling the panel. For example, a current source is needed to open PN junctions connected in series.
Attention! For users and owners of H-LED22V5 TVs who do not have the appropriate qualifications, knowledge and experience, we strongly recommend against attempting self-repair in order to avoid negative consequences that could lead to complete non-repairability of the device.

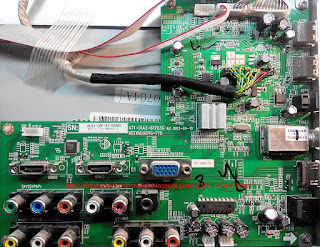

The appearance of the MainBoard MST6M182VG-T7S is shown in the figure below:
MST6M182VG-T7S can be used in TVs:
DAEWOO DSL-24L31E (Panel K236WL), ERISSON 23LEK14 (Panel 1080p Full HD 1920x1080), ERISSON 19LEK14 (Panel M185BGE-L22 Rev.C1), HYUNDAI H-LED22V5 (Panel LM215WF4), HYUNDAI H-LED24V11 (Panel LM230WF5 (TL)(D1) ), ROLSEN RL-17L1002U (Panel LTN173KT02 ), RUBIN RB-19SL1U WH (Panel 19 ").
The appearance of the power supply
Main features of the HYUNDAI H-LED22V5 device:
Installed matrix (LED-panel) LM215WF4.
To power the backlight LEDs, the CT-02UL LED driver is used.
The necessary supply voltages for all nodes of the HYUNDAI H-LED22V5 TV are generated by the K-40L1 power module, or its analogs using OB5269CP microcircuits.
MainBoard - the main board (motherboard) is an MST6M182VG-T7S module, using chips SA7454, IT6633F-P, TE330C, MP14820S, YD1517P, 25Q32 and others.
The KTDANW-14-09 tuner provides reception of television programs and tuning to channels.
Additional technical information about the panel:
Brand: L&T
Model: LM215WF4-TRA1
Type: a-Si TFT-LCD, Panel
Diagonal size: 21.5 inch
Resolution: 1920x1080, FHD
Display Mode: TN, Normally White, Transmissive
Active Area: 476.64x268.11 mm
Surface: Antiglare, Hard coating (3H)
Brightness: 250 cd / m²
Contrast Ratio: 1000: 1
Display Colors: 16.7M (6-bit + Hi-FRC), CIE1931 68%
Response Time: 1.3 / 3.7 (Tr / Td)
Frequency: 60Hz
Lamp Type: 4 strings WLED Without Driver
Signal Interface: LVDS (2 ch, 8-bit), 30 pins
Voltage: 5.0V
HYUNDAI H-LED22V5 TV with LM215WF4 LCD display, diagonal size 22 "(56 cm) in 16: 9 format. The required screen brightness of 300 cd / m² is provided by LED backlighting. Contrast, as the ratio of maximum brightness to minimum, is 1000: 1. The LED-panel of this TV has an end LED backlight - Edge LED.The design and technical capabilities of the TV include watching programs and movies in high quality HD at a resolution of 1920x1080 pixels in a graphic layout according to the standard 1080p (Full HD). -frequency or video signal can be processed by analog systems, PAL, SECAM, NTSC Image processing and generation of the digital signal occurs in the standards 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Supported multimedia file formats:.. MP3, JPEG.
The power of the acoustic system of sound 6 W (2x3 W) provide two speakers. The audio processing system NICAM STEREO is used.
The external interface (communication with other devices) is supported by standard input and output connectors: antenna input (RF), AV x2, audio x4, S-Video, component, VGA, HDMI x2, USB. An output for connecting headphones is provided. To connect a computer or laptop to this TV model, a VGA (D-Sub 15) connector is used on the TV case, this interface supports resolutions: 640x480, 800x600, 1024x768.
The power consumed by the TV in the operating mode from the network is 35 watts.
Overall dimensions: without stand 535x394x36 mm.
Mass of the TV: without stand: 5 kg.
Attention! The panel of the LM215WF4 HYUNDAI H-LED22V5 LED TV is an expensive and unreliable element.
Avoid any impact on the glass and pressure on the surface of the screen to avoid damage to the LED panel!
It is also unsafe to get liquid on the screen. Sometimes one drop is enough if it flows down the glass onto the cables so that the TV becomes unrepairable.
