KENWOOD - DDX-7025_DDX-7015_DDX-7045_ MONITOR WITH DVD RECEIVER_ SERVICE HELP

KENWOOD - DDX-7025_DDX-7015_DDX-7045_ Monitor With DVD Receiver_ Service Help



KENWOOD:   DDX7015 | DDX7025 | DDX7035 | DDX7045 | DDX7065 - MONITOR WITH DVD RECEIVER.
REMOTE CONTROL OPERATION METHOD AT CHROMA
  • While pressing 'EJECT + SRC' on the Unit (X14), press 'Reset' key to get into test mode.
  • By operating 'Test Mode Menu' screen, get into the Chroma ADJ mode.  At this time, on the upper left corner of the screen [CH: 16 VCO_FREERUN, VAL: 80] OSD display is made.  HEX display.
  • Use 8, 0 on the 10 key to change the setting value.  The VAL number on the upper left corner of the screen changes.
  • Press 'Play | Pause' key and confirm on the setting value.  When confirmed. [CH: VCO_FREEURN. VAL: 80] the color changes.
  • Use 7, 9 keys on the 10 key to set the next.  The 'CH' value changes in the upper-left corner.  Repeat the same for item 3 ~ 5.
  • When all adjustments are complete, press 'Direct' key' which writes the adjustment values to EEPROM.  At the same time, it is possible to move out the Chroma adjustment Mode.
SOURCE SCREEN
  • Operate similarly to Normal Mode; but change test Mode Main screen when press to setup and audio keys.
Chang to Test Mode Main Screen

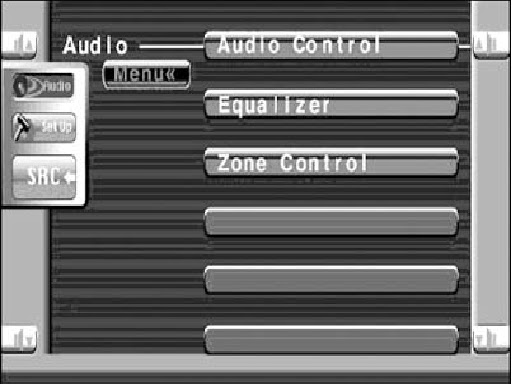

AUDIO SCREEN
  • Operates similarly to Normal Mode, but change to Test Mode Main screen when press to SRC and set up keys.
Chang to Test Mode Screen


SET UP SCREEN
  • Operates similarly to Normal Mode, but change to test Mode Main screen when press to SRC and audio keys.
Chang to Test Mode Main Screen


SECURITY CODE WRITING {E,C,M,C type only}

Security code writing for the unit that control for pair with serial number.

How to Enter to Writing Security Code
  • Press to Security Key when test mode set-up screen
  • Press to Set key When appear on display that security data memory is blank.
  • Security code input to same as normal mode and press to 'Enter' key on.
Caution:  You must security code writing for the unit when control for pair with serial number.
Complete:  Writing OK, Writing NG.
Can try again adjustment when it appears 'NG' (Not Good)

Setup Menu Screen


Calling Security Screen


Writing Security Code Screen
