PHILIPS 26MF605W/17 DISSASSEMBLY METHOD
Disconnect the HD PCB, the side AV PCB, the key PCB, the IR PCB, the Scalar PCB & Power PCB

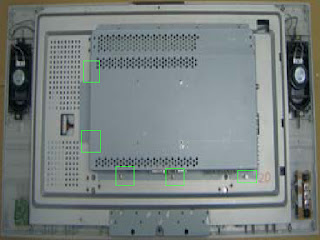

Remove the Main Shield Assembly

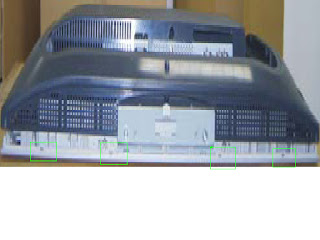

a. Remove 16 screws on the back side,
b. Remove the 2 screws on the bottom side.
c. Remove 2 screws on the tops side.
d. disconnect the Main Shield Assembley.
LCD panel: In warranty, it is not allowed to dis-assembly the LCD panel, even to replace the back light unit.
The replacement of the back light unit is a correct way when the defect is caused by back light CCFL lamps.
LCD panel
