SANYO HD PRO-SERIES - PLV-55WHD1 PLV65WH1 TROUBLESHOOTING CHART FOR POWER SHUTDOWN FAULT

SANYO HD PRO-SERIES - PLV-55WHD1 PLV65WH1 Troubleshooting Chart for Power Shutdown Fault


     This LCD projection TV provides a function which can be specified a defective area simply by indicating the LEDs on its front panel  Connect the AC cord and press Power button 'Once' and then check the LED indication. LED Indicators and Error Conditions

POWER(RED)
POWER(GREEN)
WARNING(RED)
LAMP REPLACE
ERROR CONDITION
CHECK POINT
OFF
OFF
OFF
OFF
POWER FAILURE (PRIMARY CIRCUIT)
AC COD, FUSE, VARISTOR, POWER BOARD
OFF
OFF
EMIT
OFF
POWER FAILURE (SECONDARY CIRCUIT)
P_FAIL OR P_FAIL_PN SIGNAL, FAN LOCK SIGNAL, CONNECTORS.
BLINK OR EMIT
OFF
OFF
OFF
LAMP FAILURE / TEMPERATURE FAILURE
LAMP BALLAST UNIT, SW1861(LAM COVER SWITCH), SW902(THERMAL SWITCH)
BIINK OR OFF
OFF
BLINK
OFF
TEMPERATURE FAILURE
COOLING FAN
-----------
EMIT
---------
EMIT

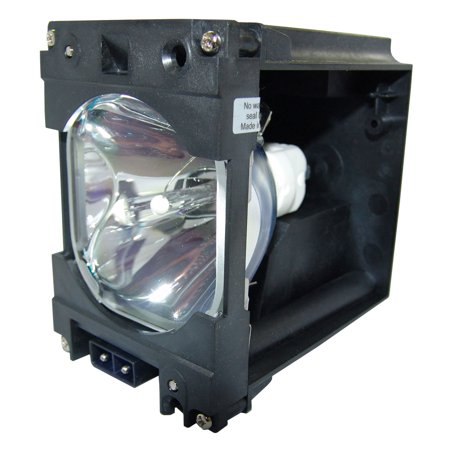

LAMP LIFE TIME
LAMP REPLACEMENT






Faulty parts and Check Points

CIRCUIT
POWER BOARD
TROUBLED LOCATION
ERROR CONDITION
CHECK POINTS
PRIMARY CIRCUIT
POWER BOARD
C616
POWER SHUT DOWN
F601
PRIMARY CIRCUIT

POWER BOARD
C619
POWER SHUT DOWN
F601,D619
PRIMARY CIRCUIT
POWER BOARD
C655
POWER SHUT DOWN
R651
PRIMARY CIRCUIT
POWER BOARD
C656
POWER SHUT DOWN
IC 651, F651
PIRMARY CIRCUIT
POWER BOARD
DB611
POWER SHUT DOWN
F601
PRIMARY CIRCUIT
POWER BOARD
D611
POWER SHUT DOWN
F601, Q611
PRIMARY CIRCUIT
POWER BOARD
D651
POWER SHUT DOWN
R651
PRIMARY CIRCUIT
POWER BOARD
D671
POWER SHUT DOWN
IC 641
PRIMARY CIRCUIT
POWER BOARD
IC 641
POWER SHUT DOWN
F619, R641
PRIMARYCIRCUIT
POWER BOARD
IC 651
POWER SHUT DOWN
C659, C661, C662, D653, F651, Q646, Q661, R652, R653, R654
PRIMARY CIRCUIT
POWER BOARD
L613
POWER SHUT DOWN
F601, Q611
PRIMARY CIRCUIT
POWER BOARD
Q611
POWER SHUT DOWN
D612, F601, Q621, R618
PRIMARY CIRCUIT
POWER BOARD
T641
POWER SHUT DOWN
IC641
