Technical description and composition of the PHILIPS 32PF7321 TV, type of panel and applicable modules. The composition of the modules.PHILIPS
Model: 32PF7321
Chassis / Version: LC4.31E AA
Panel: LC320W01
Power Supply (PSU): PLCD190P1 // DPS-188AP
PWM Power: TEA1533AT (SOP14), L6562D (PFC), TEA1601T (SOP16)
MainBoard: 3139-123-6117.2 WK542.2
IC MainBoard: TDA15021, 24C16, GM1501-LF, 24C64, M29W400DT, T6TF4AFG;
Tuner: UV1318S / A
Specifications 32PF7321
PHILIPS 32PF7321
General recommendations for repairing TV LCD
It is advisable to start any repair and diagnostics of the PHILIPS 32PF7321 TV, as well as other devices, with a careful external examination of internal and external elements, including case parts, a display, buttons and cables. Visible damage to elements can sometimes suggest directions for troubleshooting even before the necessary measurements are taken. In some cases, faulty elements can be seen with the naked eye, for example, charred resistors or swollen metal-ceramic capacitors, or electrolytic in rectifier filters. Ring cracks formed in the soldered terminals of transformers or heating elements of the circuit are also frequent sources of many malfunctions with a variety of external manifestations.
Power Module Repair
If the TV does not turn on, no indicators on its front panel are lit or blinking. Also, if the TV does not respond to the remote control and buttons, does not make any sounds or any signs of operability when turned on, there is a certain probability that the power module is defective and needs repair. Sometimes with similar manifestations a problem can only occur in the absence of processor power, which is typical for certain PHILIPS models and happens much less often. When diagnosing and repairing the power supply, after replacing the swollen capacitors of the secondary rectifier filters (if any), you must first check the mains fuse. When it is broken, the power switch and rectifier bridge diodes should be checked for avalanche (thermal) breakdown.
It should be remembered that in the practice of repair, usually the power keys of N-Fet converters do not fail due to their poor quality and, in such cases, it is necessary to look for the cause that led to a malfunction and provoked a breakdown of the key. Most often, the culprits of the accident are dried electrolytic capacitors or dangling resistors in the primary circuit, or the PWM controller chip itself may be faulty. It is also necessary to check all the semiconductor elements of the stabilization circuit in the primary and secondary circuits.
If an active Power Factor Corrector (PFC) is used in the power module circuitry, it is sometimes more difficult to troubleshoot. Knowledge, experience, intuition and skills in such cases have a great advantage for a successful repair.
Inverter Repair
In cases where the PHILIPS 32PF7321 TV has lost its image, and the sound is there and all other functions are operational, there is a possibility of an inverter (converter for powering the backlight) malfunction. When you turn on the TV, the image may appear briefly and immediately disappear. It must be borne in mind that with such manifestations, the lamps themselves also fail, the malfunction of which can be detected by replacement, by connecting to the connectors for diagnostics that are known to be serviceable and suitable in power.
The operation of the power circuits of the inverter and the backlight in the normal mode are controlled by special protection, which is organized for fire safety, for example, to disconnect during short circuits or breaks in high voltage connections or when the lamps are depressurized. This protection makes it difficult to diagnose and repair the inverter.
It should be remembered that in such cases there is a risk of failure of the power elements of the inverter and to take special care. After carrying out repairs, the protection circuit must be restored for further safe operation of the TV.
Repair Main Board
Repair of the motherboard must begin with the diagnosis and verification of all linear stabilizers or power converters of its microcircuits. Sometimes it may be necessary to update the software (software) - flashing FLASH or EEPROM. In cases of complex repairs of MB (SSB) and in the presence of the necessary skills and equipment, sometimes it may be necessary to replace its chips TDA15021, 24C16, GM1501-LF, 24C64, M29W400DT, T6TF4AFG, Tuner-UV1318S / A and other possible faulty components.
Attention to users! Self-repair of a PHILIPS 32PF7321 TV without the appropriate qualifications and experience can lead to its complete non-repairability!
Service manual and schematic diagram 32PF7321 Chassis LC4.31E AA
FOR MODELS 26PF5321/10/12, 32PF5321/10/12, 37PF5321/10/12, 26PF7321/12, 32PF7321/12, 37PF7321/10/12, 42PF5421/10.
PSU ----------------> PLCD190P1 schematic diagram

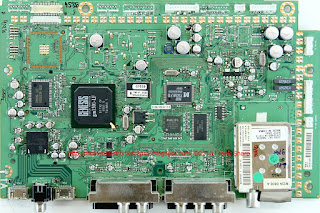

The appearance of MainBoard 3139-123-6117.2 is shown in the figure below:3139-123-6117.2
3139-123-6117.2 can be used in televisions:
PHILIPS 26PF4311S/10 (Panel LC260WX2(SL)(B2)), PHILIPS 26PF5521 (Panel PLCD170P2), PHILIPS 26PF7321/12 (Panel LC260WX2-SL04), PHILIPS 32PF4311S/10 (Panel LC320W01 (sl)(06)), PHILIPS 32PF4311S/10 (Panel LC320W01(SL)(06)), PHILIPS 32PF5331/12 (Panel T315XW01 V9), PHILIPS 32PF7321 (Panel LC320W01), PHILIPS 32PF7331/12 (Panel LC320W01), PHILIPS 32PFL3321S/60 (Panel LC320W01 (SL)(06)), PHILIPS 37PFL3321/10 (Panel LC370WX1-SL04), PHILIPS 32PF3321/12 (Panel CLAA320WB02 (P)), PHILIPS 37PF3321/12 (Panel LC370WX1 (SL)(04)).
PSU Advanced
The PLCD190P1 power supply module is installed in the 32PF7321 TV using the PFC (Power Factor Correction) scheme acting as an active filter to eliminate the higher harmonic components of the current consumption. The step-up converter based on the L6562D PWM controller does not allow the input rectifier filter's electrolytic capacitor to be connected to the network directly through open diodes when the charge current determines its reactance (about 15-30 ohms at a frequency of 50 Hz). As a result of the conversion, the charging current of the capacitor will be determined in such a way that the envelope of the high-frequency pulses of the input current will repeat the phase and shape of the sine wave of the input voltage. The health check of the PFC unit is carried out by measuring the DC voltage on the capacitor of the rectifier network. In operating mode, it should be around 380V, in standby approximately 300V.
The appearance of the power supply
Main features of the PHILIPS 32PF7321 device:
Installed matrix (LCD-panel) LC320W01.
The necessary supply voltages for all nodes of the PHILIPS 32PF7321 TV are generated by the PLCD190P1 power module or its analogs using TEA1533AT (SOP14), L6562D (PFC), TEA1601T (SOP16) microcircuits.
MainBoard - the main board (motherboard) is a module 3139-123-6117.2, using TDA15021, 24C16, GM1501-LF, 24C64, M29W400DT, T6TF4AFG chips; and others.
The UV1318S / A tuner allows you to receive television programs and tune to channels.
Additional technical information about the panel:
Brand: LG.Philips LCD
Model: LC320W01-SL20
Type: a-Si TFT-LCD, Panel
Diagonal size: 31.5 inch
Resolution: 1366x768, WXGA
Display Mode: S-IPS, Normally Black, Transmissive
Active Area: 697.68x392.26 mm
Surface: Antiglare, Hard coating (3H)
Brightness: 500 cd / m²
Contrast Ratio: 800: 1
Display Colors: 16.7M (8-bit)
Response Time: 8/10 (Tr / Td); 8 (G to G)
Frequency: 60Hz
Lamp Type: 18 pcs EEFL Embedded (Inverter)
Signal Interface: LVDS (1 ch, 8-bit), 30 pins
Voltage: 12.0V
