Technical description and composition of the PHILIPS 32PFL3008T TV, type of panel and applicable modules. The composition of the modules.PHILIPS LED
Model: 32PFL3008T / 60
Chassis / Version: TPM10.1E LA
Panel: TPT315B5-TU4A code 196 p / n: 996590004018
LED driver (backlight): integrated into PSU
PWM LED driver: PF7900S, PF7700A
Power Supply (PSU): 715G5793-P01-000-002M 996590004021
PWM Power: PF6200 (PWM flyback)
MainBoard: 715G5675-M01-000-005K
IC MainBoard: MTK5580CPOI, TC58NVG1S3ETAI0, CAT24C128WI, STA381BWTR
Tuner: TDSY-G230D
Specifications 32PFL3008T
PHILIPS 32PFL3008T
General repair guidelines for TV LCD LED
TV PHILIPS 32PFL3008T / 60, like many other electronic devices, it is advisable to start repairing by inspecting all external and internal elements. Often, by the external signs and nature of the damage to the elements, it becomes possible to draw some conclusions and determine a further algorithm for finding a defect before making the necessary measurements at control points. Elements with visible damage, for example, capacitors swelled up after boiling the electrolyte, charred resistors in certain nodes of the circuit, as well as ring cracks in solders will help the master to guess the causes and possible consequences of the malfunction.
In the absence of any signs of operability, when the PHILIPS 32PFL3008T does not turn on and does not signal anything with the control lights on the panel, there is a possibility of a malfunction of the power supply module 996590004021 of the TV. With the same manifestations, the power regulator of the control processor on the motherboard may be faulty. When diagnosing and repairing the power supply, after replacing the swollen capacitors of the secondary rectifier filters (if any), you must first check the mains fuse. When it is broken, the power elements of transistors and rectifier bridge diodes should be checked for avalanche (thermal) breakdown.
Power switches in pulsed power supplies (SMPS) fail extremely rarely for no reason and, if they are broken, it is necessary to look for a malfunction in the stabilization circuits by checking electrolytic capacitors, semiconductor devices, and resistors in the primary circuit. The cause may be a malfunction of the PWM controller chip, which can only be checked by replacing it with a new or obviously working one.
If the PHILIPS 32PFL3008T TV does not have an image, but there is sound, a malfunction in the LED backlight circuits of panel 996590004018 code 196 is likely. It is also necessary to check the operability of the electrolytic capacitors of the filter of the secondary rectifiers of the power supply unit (PSU) for excessive ESR.
To check the health of the LEDs, as well as contact connections in the ruler circuit, the panel must be disassembled.
It should be remembered that it is not possible to determine the open circuit in the LED lines without disassembling the panels with a tester or multimeter without an additional device, for example, a current source. To open all PN junctions connected in series at once, a voltage of several tens of volts may be required.
Diagnosis and repair of the motherboard 996590004044 is carried out by checking the operability of the stabilizers or power converters of the module chips. In some cases, a software update is required.
Once again, we remind TV users: you should not make attempts to repair it yourself without the appropriate knowledge, experience and the necessary qualifications! Trust the repair only to professionals with sufficient experience in the field of electronic equipment repair.
Service manual and schematic diagram 32PFL3008T/60 Chassis TPM10.1E LA ----> part1, part2, part3
The appearance of the MainBoard 715G5675-M01-000-005K is shown in the figure below:
715G5675-M01-000-005K
715G5675-M01-000-005K can be used in TVs:
PHILIPS 22PFL4008T/60 (Panel TPM215HW01-HGJL02 code 200), PHILIPS 32PFL3008T/60 (Panel TPT315B5-TU4A code 196 p/n: 996590004018), PHILIPS 32PFL3018T/60 (Panel DUNTK5004ZZ RUNTK5003 code 196), PHILIPS 32PFL4208T60 (Panel TPT315B5-DXJSFE), PHILIPS 32PFL4308T/60 (Panel LTA320HJ06 001 code 185), PHILIPS 46PFL4308T/60 (Panel LTA460HJ18), PHILIPS 46PFL3008T/60 (Panel TPT460H1-HM01 Rev-C1J code 195).

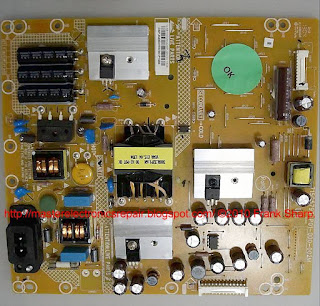

The appearance of the power supply
Key Features of PHILIPS 32PFL3008T:
Installed matrix (LED panel) TPT315B5-TU4A code 196 p / n: 996590004018.
To power the backlight LEDs, a converter is used, combined with a power supply unit, controlled by the PF7900S, PF7700A PWM controller.
The necessary supply voltages for all nodes of the PHILIPS 32PFL3008T TV are generated by the 715G5793-P01-000-002M power supply module, or its analogs using PF6200 microcircuits (PWM flyback).
MainBoard - the main board (motherboard) is a module 715G5675-M01-000-005K, using chips MTK5580CPOI, TC58NVG1S3ETAI0, CAT24C128WI, STA381BWTR and others.
The TDSY-G230D tuner provides TV reception and channel tuning.
