Thursday, 9 January 2020

REPAIR / SERVICING TV SAMSUNG UE40ES6100W

Technical description and composition of the SAMSUNG UE40ES6100W TV, panel type and applicable modules. The composition of the modules.
SAMSUNG LED
Model: UE40ES6100W
Chassis / Version: Ver. Ti01
Panel: LTJ400HV05-L
LED backlight: 40NNB 3D-7032LED-MCPCB-L V2GE-400SMA-R3 (11,12,12); 40NNB 3D-7032LED-MCPCB-R V2GE-400SMB-R3 (11,12,12)
T-CON: LSJ400HV05-S BN41-01789A
LED driver (backlight): integrated into PSU
PWM LED driver: SLC5012M = MAP3312B
Power Supply (PSU): BN44-00518B - PD46B1D_CHS
PWM Power: FA5760N, SPC7011F (PFC)
MainBoard: BN41-01812A BN94-05678T
IC MainBoard: CPU: SEMS27; NAND FLASH KLM2G1HE3F-B001; EEPROM: 24C256; Submicom: WT61P805
Tuner: BN40-00239B
Control: Wi-Fi Module WIDT20R BN59-01148A, Bluetooth WIBT30a BN96-21431C

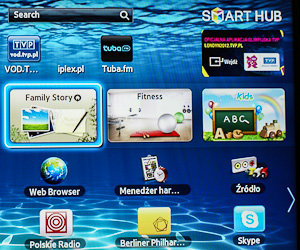

Appearance
SAMSUNG UE40ES6100W
General repair guidelines for TV LCD LED
In the case when the UE40ES6100W does not turn on, does not respond to the remote control and buttons on the front panel, does not blink bulbs and does not show any signs of operability, the BN44-00518B power supply module is probably defective in this case. When diagnosing and repairing the power supply, first of all, replace the swollen capacitors of the filter of the secondary rectifiers and check the fuse and, if it is broken, it is necessary to identify the cause. Often in such cases, an avalanche (thermal) breakdown is detected in the power semiconductor elements of the module — rectifier diodes and transistors in the primary circuit.
Key breakdown in switching power supplies (PPS) usually does not occur for no reason and you should look for other faulty circuit elements that could provoke a defect. This can be dried electrolytic capacitors in the primary circuit, and faulty damper elements, as well as dangling resistors or punched semiconductor elements in the stabilization circuits. Possible defective PWM chip from the manufacturer.
If the SAMSUNG UE40ES6100W TV does not have an image, but there is sound, a malfunction in the backlight circuits of the LTJ400HV05-L LED panel is likely.
Often there is a need to disassemble the panel to check the health of the LEDs on the strips 40NNB 3D-7032LED-MCPCB-L V2GE-400SMA-R3 (11,12,12) and 40NNB 3D-7032LED-MCPCB-R V2GE-400SMB-R3 (11,12 , 12), as well as their contact connections in the connectors.
When trying to identify a break in the LED lines, it should be borne in mind that it is difficult to do this without disassembling the panel. For example, a current source is needed to open PN junctions connected in series.
Repair or diagnostics of the BN41-01812A BN94-05678T motherboard should begin by checking the stabilizers and power converters needed to power the chips and matrix. If necessary, update the software (software).
In some cases, they require checking or replacing (if necessary) the elements of the MB board (SSB) - CPU: SEMS27; NAND FLASH KLM2G1HE3F-B001; EEPROM: 24C256; Submicom: WT61P805. In cases where the BGA processor is used, its malfunction is usually detected by the local heating method.
If you suspect a malfunction of the tuner BN40-00239B, first of all, you need to make sure the software is correct, as well as the presence of the necessary voltage levels at the corresponding terminals of the tuner.
For owners of the UE40ES6100W TV, we recommend that you contact qualified personnel with experience to repair! Self-repair attempts without the appropriate knowledge and skills can lead to serious negative consequences!

SCHEMATIC MANUAL ------------>  SAMSUNG Chassis U78A/U79A Model: UE**ES61***, UE**ES63***, UE**ES65***, UE**ES67***, UE**ES68***.


 The appearance of the MainBoard BN41-01812A is shown in the figure below:
BN41-01812A
BN41-01812A can be used in TVs:
SAMSUNG UE32EH5300P (Panel DE320BGM-C1 ), SAMSUNG UE40ES6307U (Panel LTJ400HV05-L), SAMSUNG UE40ES5537K (Panel CY-LE400BGSV1L), SAMSUNG UE32ES5557K (Panel LE320BGM-C1), SAMSUNG UE40EH5307K (Panel LTJ400HM08-L), SAMSUNG UE37ES6307U (Panel LE370CSA-C1), SAMSUNG UE32ES5500 UE32ES5500W (Panel LE320BGM-C1), SAMSUNG UE32ES5530W UE32ES5530 (Panel LE320BGM-C1), SAMSUNG UE32ES5507K UE32ES5507V (Panel LE320BGM-C1), SAMSUNG UE32ES5537K (Panel LE320BGM-C1), SAMSUNG UE40ES5530W UE40ES5530 (Panel CY-LE400BGSV1L), SAMSUNG UE40ES6100W (Panel LTJ400HV05-L), SAMSUNG UE32EH5300W UE32EH5300 (Panel DE320BGM-C1), SAMSUNG UE32EH5307K UE32EH5307 (Panel DE320BGM-C1), SAMSUNG UE55ES6100W (Panel LTJ550HW08-L), SAMSUNG UE46ES6307U (Panel LTJ460HW05-L), SAMSUNG UE40EH5300W (Panel LTJ-400HM08-L), SAMSUNG UE46ES6100W UE46ES6100 (Panel LTJ460HW05-L), SAMSUNG UE37ES6100W (Panel LE370CSA-C1), SAMSUNG UE50ES5700 UE50ES5700SXZG (Panel LE500BGA-B2), SAMSUNG UE40ES5507K UE40ES5507 (Panel LE400BGA-B1), SAMSUNG UE46EH5300 UE46EH5300W (Panel LTJ460HN05-L), SAMSUNG UE32ES6307 UE32ES6307U (Panel LE320CSM-C1), SAMSUNG UE50ES5507K UE50ES5507 (Panel LE500BGA-B2), SAMSUNG UE40ES5557K UE40ES5557 (Panel LE400BGA-B1), SAMSUNG UE46ES6200 (Panel LTJ460HW05-C), SAMSUNG UE32ES6100 UE32ES6100W (Panel LE320CSM-C1), SAMSUNG UE40ES5500 UE40ES5500W (Panel LTJ400HM09-L), SAMSUNG UE32ES5550 UE32ES5550W (Panel LE320BGM-C1).
PSU Advanced
The power module BN44-00518B is made using the Power Factor Correction (PFC) scheme to eliminate multiple AC harmonics introduced into the power supply by the device. The PFC assembly is a Step-Up Converter based on the SPC7011F PWM controller, which evenly distributes high-frequency impulses of the charging current of the electrolytic capacitor of the rectifier filter of the mains voltage over a period of 50 Hz. The current of its charge in this case will already be determined not by its reactance (usually 10-30 ohms for the network frequency), but by the elements of the converter. As a result, a change in the amplitude of the pulses (envelope) of the consumed current of the converter will repeat the shape and phase of the input sinusoidal voltage. The availability of the increased voltage (about + 380V) in the operating mode on the capacitor of the line filter indicates the serviceability of the PFC node.
The appearance of the power supply
Main features of the SAMSUNG UE40ES6100W device:
Installed matrix (LED-panel) LTJ400HV05-L.
The matrix control uses the Timing Controller (T-CON) LSJ400HV05-S.
To power the backlight LEDs, a converter is used, combined with a power supply unit, controlled by the PWM controller SLC5012M = MAP3312B.
The formation of the necessary supply voltages for all nodes of the SAMSUNG UE40ES6100W TV is carried out by the BN44-00518B power module, or its analogs using FA5760N, SPC7011F (PFC) microcircuits.
MainBoard - the main board (motherboard) is a BN41-01812A module, using CPU chips: SEMS27; NAND FLASH KLM2G1HE3F-B001; EEPROM: 24C256; Submicom: WT61P805 and others.
The tuner BN40-00239B provides the reception of television programs and tuning to channels.
