Wednesday, 15 April 2020

REPAIR / SERVICING TV ERISSON 32LES65

Technical description and composition of the ERISSON 32LES65 TV, panel type and applicable modules. The composition of the modules.
ERISSON LED
Model: 32LES65
Chassis / Version: 5800-A8M57A-OP20
Panel: RDL320HY (AD0-301)
LED driver (backlight): integrated into MainBoard
PWM LED driver: TPS61196
Power Supply (PSU): integrated into MainBoard
PWM Power: TEA1733P
MainBoard: 5800-A8M57A-OP20 VER00.02
IC MainBoard: Spi Flash: 25Q32
Specifications 32LES65

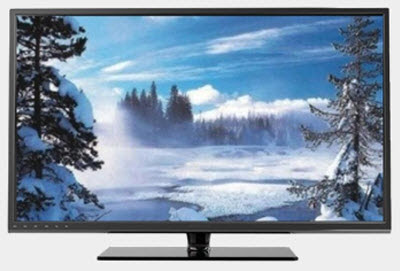

ERISSON 32LES65
General repair guidelines for TV LCD LED
Repair of the ERISSON 32LES65 TV should begin with a fault diagnosis, which involves a careful examination of the external and internal elements of the device. According to some external signs of a change in the state of some elements, it is sometimes possible to make assumptions about the nature of the defect, as well as determine the further direction of the troubleshooting. If charred resistors, swollen electrolytic or cermet capacitors, ring cracks in the solders of the terminals of transformers or heating elements are detected, it is advisable to establish the causes and consequences of the malfunction that has arisen, as well as to check the connected elements and assemblies.
If the 32LES65 TV does not turn on, does not make any sounds when it is turned on, and also no indicators on the front panel light or blink - there is a high probability of a malfunction in the power module. In some cases, only the stabilizer or power converter of the control processor may be faulty, which is typical for some ERISSON models. Diagnostics and repair of the common power supply should always begin with a check of the mains fuse and the condition of the electrolytic capacitors of the secondary rectifier filters. Defective and swollen capacitors should be replaced with new ones. If the fuse breaks, it is advisable to check for a breakdown, first of all, all the power semiconductor elements of the converter and the diode bridge of the rectifier network, as well as the large electrolytic capacitor of the filter of the rectifier network.
In most cases, key breakdowns in switching power supplies (SMPS) do not occur for no reason and you should look for other faulty circuit elements that could provoke a defect. This can be dried electrolytic capacitors in the primary circuit, and faulty damper elements, as well as dangling resistors or punched semiconductor elements in the stabilization circuits. Possible defective PWM chip from the manufacturer.
If, when you turn on the TV, the image appears and immediately disappears, or is absent initially when you turn on, but the sound has other functions that work, there is a high probability of a malfunction of the LED driver (power converter for the backlight LEDs of the RDL320HY panel (AD0-301)). In such cases, the general power module is also subject to verification, in which the electrolytic capacitors of the rectifier filter supplying the LED driver should be checked.
To check the health of the LEDs and contact connections in their power circuit, the panel must be disassembled.
To detect a break in the LED lines without disassembling the panel, a current source is required. It is impossible to open transitions connected in series with a simple multimeter; voltage of several tens of volts is necessary.
When trying to repair the motherboard, you should first check the serviceability of linear stabilizers or power converters of microcircuits and, if necessary, update the software (software).
In some cases, they require checking or replacing (if necessary) the elements of the MB board (SSB) - Spi Flash: 25Q32. In cases where the BGA processor is used, its malfunction is usually detected by the local heating method.
Remember! Attempts to self-repair by users of the ERISSON 32LES65 TV without the appropriate qualifications and the necessary experience can lead to serious negative consequences!

 FIRMWARE FOR SPI FLASH  ----------->   ERISSON 32LES65, Main: 5800-A8M57A-OP20 VER00.02, Panel: RDL320HY (AD0-301)
 To reduce the backlight current in LED drivers with a TPS61196 controller, it is necessary to proportionally increase the total resistance of the resistors from terminal 10 (ISET) to the housing. The maximum current in each of the six channels (in milliamperes) for the Rset resistor (in kilo-ohms) is determined from the ratio 3992 * 1.229V / Rset. In channels connected in parallel, the currents add up.



Repair MainBoard
The appearance of the MainBoard 5800-A8M57A-OP20 is shown in the figure below:
5800-A8M57A-OP20
5800-A8M57A-OP20 can be used in TVs:
ERISSON 40LES73 (Panel V400HJ6-PE1 Full HD), ERISSON 32LES73 (Panel ST3151A05-5 (SDL320HY)), ERISSON 32LES65 (Panel RDL320HY (AD0-301)), ERISSON 39LES65 (Panel RDL390HY (T390XVN01.0 39T11-C02)), ERISSON 29LES65 (Panel SK28M31A (L)), ERISSON 32LES69 (Panel ST3151A05-5 SDL320HY (CD0-605)(02)), ERISSON 40LES69 (Panel V400HJ6-PE1 Rev.C1).
Main features of the ERISSON 32LES65 device:
Installed matrix (LED-panel) RDL320HY (AD0-301).
To power the backlight LEDs, a converter is used, combined with the main board 5800-A8M57A-OP20, controlled by the TPS61196 PWM controller.
The power module is combined with the MainBoard and is made according to the flyback AC / DC voltage converter circuit using TEA1733P microcircuits.
MainBoard - the main board (motherboard) is a 5800-A8M57A-OP20 module, using Spi Flash chips: 25Q32 and others.
Trademark: ERISSON, Model: 32LES65.
Briefly from the TV: LCD, 720p HD, 32 "(81 cm) diagonal, HDMI: 2, USB: 2, DVB-T2 support, backlight type: Edge LED.
The composition includes MainBoard 5800-A8M57A-OP20 VER00.02 and LCD panel (matrix) RDL320HY (AD0-301). The power supply is combined with the MainBoard.
ERISSON 32LES65 TV with an RDL320HY LCD display, 32 "(81 cm) diagonal size in 16: 9 format. The required screen brightness of 250 cd / m² is provided by LED backlighting. Contrast, as the ratio of maximum brightness to minimum, is 3000: 1. The LED panel of this TV has an end LED backlight - Edge LED. You can view images in high quality HD at a resolution of 1366x768 pixels in the standard for graphic decomposition 720p (HD Ready). The input high-frequency or video signal can be processed in an analog system x PAL, SECAM, NTSC. Graphic processing and digital signal generation occurs in the standards 480i, 480p, 576i, 576p, 720p, 1080i. Supported media file formats: MP3, WMA, MPEG4, Xvid, MKV, JPEG.
The power of the sound system 12 W (2x6 W) provide two speakers. It uses a NICAM stereo signal processing system and Sound Surround.
The external interface (communication with other devices) is supported by standard input and output connectors: antenna input (RF), audio x2, component, VGA, HDMI x2, USB x2. An output for connecting headphones is provided. To connect a computer or laptop to this TV model, a VGA (D-Sub 15) connector is used on the TV case, this interface supports resolutions: 640x480, 800x600, 1024x768, 1360x768.
A digital tuner is capable of receiving television channels in the DVB-T, DVB-T2 standards.
Overall dimensions: 744x495x180 mm.
Mass of the TV: 4.85 kg.
Attention! The panel of the RDL320HY (AD0-301) LED TV ERISSON 32LES65 is an expensive and unreliable element.
Avoid any impact on the glass and pressure on the surface of the screen to avoid damage to the LED panel!
It is also unsafe to get liquid on the screen. Sometimes one drop is enough if it flows down the glass onto the cables so that the TV becomes unrepairable.
