Friday, 8 February 2019

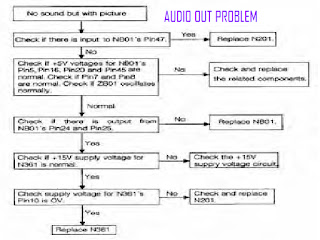

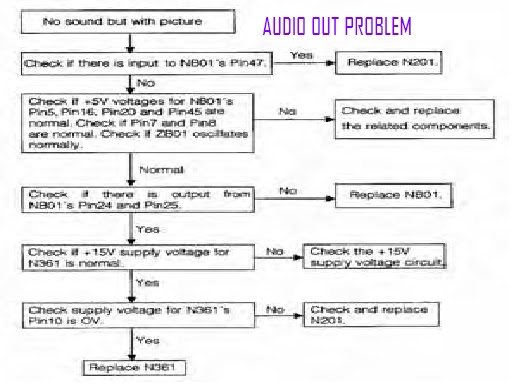

APEX – PF2720 _ PF2730 _ PF3230 - RANSER – RA29PF - DAEWOO-ST2407PF - [USING STR-G8626] - POWER SUPPLY FAULT FINDING CHART

STR-G8626

PIN FUNCTIONS

	STR-G5653 _ G-8626
PIN	SYMBOL	FUNCTION
1	D	MOSFET DRAIN
2	S	MOSFET SOURCE
3	GND	GROUND
4	Vin	SUPPLY VOLTAGE INPUT
5	OCP/FB	OVER CURRENT PROTECTION.
	STR-F6654
1	OCP/FB	OVER CURRENT PROTECTION
2	S	MOSFET SOURCE
3 4 5	D Vin GND	MOSFET DRAIN VOLTAGE IN GROUND

The Series STR-G 86626/5653/F6654 is specifically designed to satisfy the requirements for increased integration and reliability in off-line quasi-resonant flyback converters. The series incorporates a high-precise error amplifying control and drive circuit with discrete avalanche-rated power MOSFET, featuring fewer external components, small-size and standard power supply. Covering the power range from below 25 watts up to 300 watts for 100/115/230 VAC inputs, and up to 150 watts for 85 to 265 VAC universal input, these devices can be used in a range of applications, from battery chargers and set top boxes, to televisions, monitors, and industrial power supply units. Cycle-by-cycle current limiting, under-voltage lockout with hysteresis, over-voltage protection, and thermal shutdown protects the power supply during the normal overload and fault conditions. Low-current startup and a low-power standby mode selected from the secondary circuit completes a comprehensive suite of features. The series is provided in a five-pin over molded SIP style package, affording dielectric isolation without compromising thermal characteristics.
FEATURES

Fly back Operation with Quasi-Resonant Soft Switching for Low Power Dissipation and EMI
Rugged Avalanche-Rated MOSFET
Soft drive circuit MOSFET
Adjustable MOSFET switching speed
Choice of MOSFET Voltage and Rds(on)
Full Over-Current Protection (no blanking)
Under-Voltage Lockout with Hysteresis
Over-Voltage Protection
Direct Voltage Feedback
Low Start-up Current (100 Amax)
Low-Frequency, Low-Power Standby Operation
Over molded 5-Pin Package
