Friday, 10 January 2020

REPAIR / SERVICING TV SAMSUNG UE40H5500

Technical description and composition of the SAMSUNG UE40H5500 TV, panel type and applicable modules. The composition of the modules.
SAMSUNG LED
Model: UE40H5500 UE40H5500AK
Chassis / Version: Ver. TS01
Panel: CY-GH040BGLV2V
LED backlight: D4GE-400DCA-R2 (14.03.17) + D4GE-400DCB-R2 (14.03.17)
T-CON: BN41-02111A LSF400HM03
LED driver (backlight): integrated into PSU; 195V 450mA
PWM LED driver: 7014X
MOSFET LED driver: AOD5N40
Power Supply (PSU): BN44-00703A L48S1_ESM
PWM Power: FA6A01N (PWM resonant), S3051 (PFC)
MOSFET Power: 13N60M2 (PFC), 50R380P
MainBoard: BN41-02156A BN94-07595J
IC MainBoard: CPU: SEMS31; SPI Flash: 25Q40CL; EEPROM: S24C512; SOUND: NTP7414
Tuner: BN40-00288A DHTQ403IH286A
Control: BN59-01178B; IR: BN41-02151A; WiFi Module: WIDT30Q BN59-01174A
Technical Specifications UE40H5500
SAMSUNG UE40H5500
General repair guidelines for TV LCD LED
If the UE40H5500 does not turn on, does not respond to the remote control and the front panel buttons, does not blink light bulbs and does not show any signs of operability, the power supply module BN44-00703A L48S1_ESM is probably faulty in this case. Diagnostics and repair of the common power supply should always begin with a check of the mains fuse and the condition of the electrolytic capacitors of the secondary rectifier filters. Defective and swollen capacitors should be replaced with new ones. If the fuse breaks, it is advisable to check for a breakdown, first of all, all the power semiconductor elements of the converter and the diode bridge of the rectifier network, as well as the large electrolytic capacitor of the filter of the rectifier network.
It should be remembered that in the practice of repair, usually the power switches in switching power supplies (SMPS) do not fail due to their poor quality and, in such cases, it is necessary to look for the cause that led to a malfunction and provoked a breakdown of the key. Most often, the culprits of the accident are dried electrolytic capacitors or dangling resistors in the primary circuit, or the FA6Axx PWM controller chip (FA5760N) itself may be faulty. It is also necessary to check all the semiconductor elements of the stabilization circuit in the primary and secondary circuits.
If there is no image when you turn on the SAMSUNG UE40H5500, or it appears and immediately disappears, but there is sound, most likely there is a malfunction in the backlight LED circuit of the CY-GH040BGLV2V panel, or in the LED node of the driver-converter of their power supply.
In most cases of lack of backlight, it becomes necessary to disassemble the panel in order to check the LEDs, connectors, loops and all contact connections. If one or several LEDs does not work in one line, therefore, they are broken and should be replaced.
To check the LED lines for breaks without disassembling the panel, for example, a current source will help. It is impossible to open series-connected PN-junctions with a simple multimeter, a voltage of the order of several tens of volts is required.
When trying to repair the motherboard, you should first check the serviceability of linear stabilizers or power converters of microcircuits and, if necessary, update the software (software).
Sophisticated MB board repair (SSB) is in some cases possible and practiced by repairmen. To do this, check and, if necessary, replace the CPU elements: SEMS31; SPI Flash: 25Q40CL; EEPROM: S24C512; SOUND: NTP7414. BGA chip malfunctions are usually easy to detect by warming up.
If the TV works normally from external devices, but does not tune into television channels, the tuner BN40-00288A DHTQ403IH286A may be malfunctioning. In such cases, first of all, you should make sure that there are supply voltages at its corresponding terminals. It is also necessary to make sure that the tuner and processor can exchange data via the I2C bus. Sometimes the cause of the inoperability of the tuner may be a software failure.
It should be remembered! Attempts to repair the SAMSUNG UE40H5500 TV, in the absence of the necessary qualifications and experience, are categorically not recommended and are fraught with negative consequences, up to the complete non-repairability of the device!

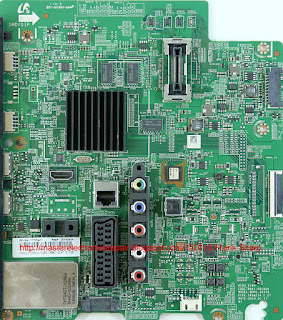

The appearance of the MainBoard BN41-02156A is shown in the figure below:
BN41-02156A
BN41-02156A can be used in TVs:
SAMSUNG UE40H6200 UE40H6200AK (Panel CY-GH040CSLV1V), SAMSUNG UE32H5500 UE32H5500AK (Panel GH032BGA-B2), SAMSUNG UE40H5500 UE40H5500AK (Panel CY-GH040BGLV2V), SAMSUNG UE32H6200AK (Panel CY-GH032CSLV1V), SAMSUNG UE40H6350 (Panel CY-GH040CSLV2V), SAMSUNG UE32H6410AU UE32H6410 (Panel CY-GH032CSLV4V), SAMSUNG UE40H6400AK UE40H6400 (Panel CY-SH040CSL V2H), SAMSUNG UE48H6200 UE48H6200AK (Panel CY-GH048CSLV1V), SAMSUNG UE48H6230AK UE48H6230 (Panel CY-GH048CSLV1V), SAMSUNG UE48H6400AK UE48H6400 (Panel CY-GH048CSLV2V), SAMSUNG UE48H6410AU UE48H6410 (Panel CY-GH048CSLV4V), SAMSUNG UE48H6240AK UE48H6240 (Panel CY-GH048CSLV1V), SAMSUNG UE32H4500AK UE32H4500 (Panel CY-HH032AGLV2V), SAMSUNG UE40H6410 UE40H6410AU (Panel CY-GH040CSLV4V), SAMSUNG UE40H6500 UE40H6500AT (Panel CY-GH040CSLV1V), SAMSUNG UE32H6230 UE32H6230AK (Panel T320HVF05.2), SAMSUNG UE32H4510 UE32H4510AK (Panel HH032AGH-R3 BN96-31086F), SAMSUNG UE32H6350 UE32H6350AK (Panel CY-GH032CSLV2V), SAMSUNG UE40H6230 UE40H6230AK (Panel CY-GH048CSLV1V).
The appearance of the power supply
Main features of the SAMSUNG UE40H5500 device:
Installed matrix (LED panel) CY-GH040BGLV2V.
The matrix control uses the Timing Controller (T-CON) BN41-02111A.
To power the backlight LEDs, a converter is used, combined with a power supply, controlled by a 7014X PWM controller. As power elements of the LED driver, keys of the AOD5N40 type are used.
The necessary supply voltages for all nodes of the SAMSUNG UE40H5500 TV are generated by the BN44-00703A power module or its analogs using FA6A01N (PWM resonant), S3051 (PFC) microcircuits and 13N60M2 (PFC), 50R380P type power switches.
MainBoard - the main board (motherboard) is a BN41-02156A module, using CPU chips: SEMS31; SPI Flash: 25Q40CL; EEPROM: S24C512; SOUND: NTP7414 and others.
Tuner BN40-00288A DHTQ403IH286A provides the reception of television programs and tuning to channels.
