REPAIR / SERVICING TV SAMSUNG UE55ES6760

Technical description and composition of the SAMSUNG UE55ES6760 TV, panel type and applicable modules. The composition of the modules.
SAMSUNG LED
Model: UE55ES6760 UE55ES6760SXZG
Panel: LTJ550HW10-B
LED backlight: Edge Led 7032 6V
T-CON: BN41-01789A
LED driver (backlight): with integrated PSU; 163V 530mA (55), 136V 530mA (46)
Power Supply (PSU): BN44-00521C
PWM Power: D2011K (Standby)
MOSFET Power: K8A50D
MainBoard: BN41-01807A
IC MainBoard: WT61P805, KLM2G1HE3F-B001, K4B2G1646C-HCK0, NTP7412S
Tuner: BN40-00236A DNSD243VH144A
Appearance
SAMSUNG UE55ES6760
General repair guidelines for TV LCD LED
Possible malfunctions
- SAMSUNG UE55ES6760 TV does not turn on at all. The control lights do not light or flash. The TV on the remote control and the control panel buttons do not respond.
In such cases, the BN44-00521C power supply is usually faulty. It is necessary to measure the output voltages in its secondary circuits, and if they are completely absent, check the serviceability of the power switches (K8A50D) and rectifier diodes for possible breakdown (short circuit).
In case of diode breakdowns in the secondary circuits, the converter can operate in emergency short-circuit mode without output voltages, and during short circuit in the power elements of the primary circuit, the mains fuse and / or current sensor at the source of the key usually breaks.
Mos-Fet power switches, used in switching power supplies, sometimes fail due to a malfunction of any other elements that can put it out of operation in key mode, or create an excess of the maximum permissible parameters of the switch. These can be elements supplying the PWM controller, frequency-setting or damping circuits, or negative feedback elements in the stabilization circuit. PWM controllers D2011K (Standby), in the absence of visible damage or obvious short-circuit between the terminals, are checked by replacing with new ones, or obviously working.
- There is no image, but there is sound and reaction to commands from the remote control. Or the image appears immediately after turning on and disappears.
As a rule, in such cases there is no display backlight. The reason for this may be a break in the LED circuit, or a problem in stabilizing their power supply.
To check the LED lines for breaks without disassembling the panel, for example, a current source will help. It is impossible to open series-connected PN junctions with a simple multimeter, a voltage of the order of several tens of volts is required.
- The TV does not enter the operating mode, does not respond to the remote control. The indicator on the front panel lights constantly or blinks.
Repair or diagnostics of the BN41-01807A motherboard should begin by checking the stabilizers and power converters needed to power the chips and matrix. If necessary, update or replace the software (software). When repairing an MB board, you need to check its components WT61P805, KLM2G1HE3F-B001, K4B2G1646C-HCK0, NTP7412S. Defective items should be replaced. If chips with BGA soldering technology are used, a problem in its implementation is detected by the local heating of the chip.
Before changing the tuner BN40-00236A DNSD243VH144A, if it is not possible to tune to television channels, you should make sure that there are supply voltages that must be measured at the corresponding terminals of the tuner and check the software for correctness. The pulses of the data exchange of the tuner with the processor can be controlled by an oscilloscope
TV users and owners must remember that attempts to self-repair a SAMSUNG UE55ES6760 TV without the appropriate qualifications and necessary experience can lead to serious negative consequences!

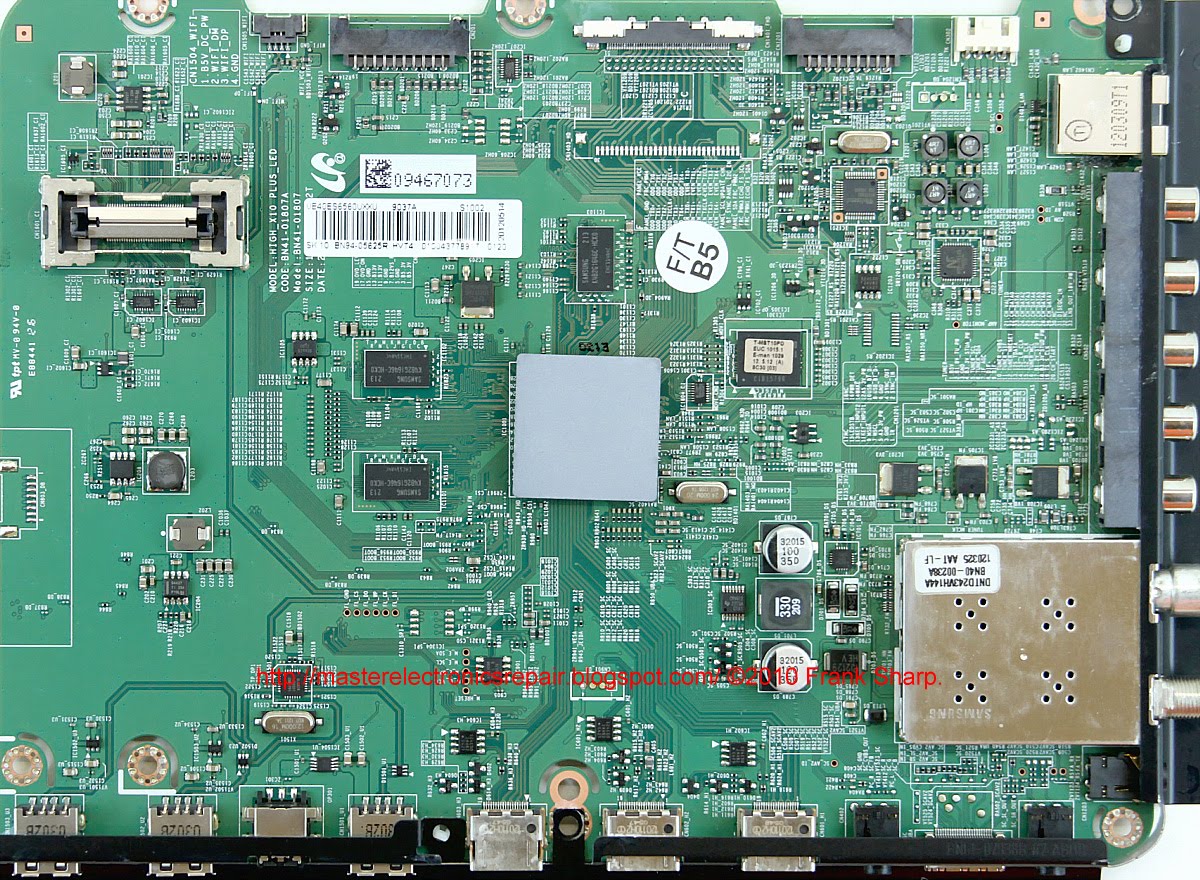

The appearance of the MainBoard BN41-01807A is shown in the figure below:
BN41-01807A
BN41-01807A can be used in TVs:
SAMSUNG UE40ES6550S (Panel LTJ400HV05-V), SAMSUNG UE46ES6547U UE46ES6547 (Panel LTJ460HW06-L), SAMSUNG UE40ES7207U (Panel LTJ400HL10-L), SAMSUNG UE46ES6540 UE46ES6540U (Panel LTJ460HW06-L), SAMSUNG UE40ES6750 MXRU (Panel LTJ400HV08-L), SAMSUNG UE32ES6727U UE32ES6727 (Panel LTJ320HW06-L), SAMSUNG UE40ES6757 UE40ES6757M (Panel LTJ400HV08-L), SAMSUNG UE32ES6550 UE32ES6550S (Panel LE320CSM-C1), SAMSUNG UE40ES6540S (Panel LTJ400HV07-L), SAMSUNG UE55ES6760 UE55ES6760SXZG (Panel LTJ550HW10-B), SAMSUNG UE32ES6540 UE32ES6540S (Panel LE320CSM-C1), SAMSUNG UE40ES6727 UE40ES6727U (Panel LTJ400HV08-L), SAMSUNG UE32ES6757M (Panel LE320CSM-C2).
The appearance of the power supply
Main features of the SAMSUNG UE55ES6760 device:
Installed matrix (LED panel) LTJ550HW10-B.
The matrix control uses the Timing Controller (T-CON) BN41-01789A.
To power the backlight LEDs, a converter is used, combined with a power supply.
The formation of the necessary supply voltages for all nodes of the SAMSUNG UE55ES6760 TV is carried out by the BN44-00521C power module or its analogs using D2011K (Standby) microcircuits and K8A50D type power switches.
MainBoard - the main board (motherboard) is a module BN41-01807A, using microchips WT61P805, KLM2G1HE3F-B001, K4B2G1646C-HCK0, NTP7412S and others.
Tuner BN40-00236A DNSD243VH144A provides the reception of television programs and tuning to channels.
