REPAIR / SERVICING TV SHIVAKI STV-24LED6

Technical description and composition of the TV SHIVAKI STV-24LED6, type of panel and applicable modules. The composition of the modules.
SHIVAKI LED
Model: STV-24LED6 STV-24LED6W
Chassis / Version: TP.VST59.P67
Panel: V236BJ1-P01
LED backlight: LED236D44-ZC14-01
T-CON: V236BJ1-XC01
LED driver (backlight): integrated into MainBoard
PWM LED driver: OB3350CP
Power Supply (PSU): integrated into MainBoard
PWM Power: PWM SOT23-6
MOSFET Power: MDF7N60B
MainBoard: TP.VST59.P67
IC MainBoard: CPU: TSUMV59XE-Z1, SPI Flash: W25Q32FVSIG
Tuner: NoName
Technical Specifications STV-24LED6
SHIVAKI STV-24LED6
General repair guidelines for TV LCD LED
Possible manifestations of defects
- The SHIVAKI STV-24LED6 TV does not turn on at all. The control lights do not light or flash. The TV on the remote control and the control panel buttons do not respond.
The malfunction in such cases should be sought first of all in the power elements of a switching power supply (IIP) - a network voltage converter (AC / DC), which in this TV model is combined with the MainBoard TP.VST59.P67 main board. It is necessary to measure the output voltages in its secondary circuits, and if they are completely absent, check the serviceability of power switches (MDF7N60B) and rectifier diodes for possible breakdown (short circuit).
In case of breakdowns of semiconductors in the secondary circuits of any converter, as a rule, it can operate in emergency short-circuit mode without output voltages, and during short circuit in the elements of the primary circuit, the main fuse and, less often, the current sensor at the source of the key are most often cut off.
The breakdown of Mos-Fet keys used in pulsed sources is often caused by malfunctions of other elements, for example, in the power supply circuit of a PWM controller, in frequency-setting or damping circuits, as well as in Negative Stabilization Feedback. PWM SOT23-6 PWM chips are usually checked by replacing with new ones, or obviously working.
- There is no image, there is sound, it is responding to the remote control. Or immediately after turning on for a second, the image may appear and immediately disappear.
As a rule, in such cases there is no display backlight. The reason for this may be a break in the LED circuit, or a problem in stabilizing their power supply.
To check the health in the LED circuit, it is better to use a current source with a maximum voltage of 200V. We do not recommend using any voltage sources for this purpose. You can check each LED individually with a simple Chinese multimeter (powered by 9 volts) in the P-N-junction test mode. If you connect the red probe of the multimeter to the anode of the LED, and the black to its cathode, then the 3-volt LED will light up slightly, and in the opposite direction you can detect the transition of the emergency zener diode. A zener diode PN junction indirectly indicates a LED-a
- The indicator on the front panel blinks, the TV does not turn on in the operating mode, it does not respond to the remote control.
Repair or diagnostics of the TP.VST59.P67 motherboard should be started by checking the stabilizers and power converters needed to power the microcircuits and matrix. If necessary, update or replace the software (software). In cases of attempts to repair the MB (SSB) board, it is necessary to check the health of its elements - CPU: TSUMV59XE-Z1, SPI Flash: W25Q32FVSIG which may require replacement with new ones. If a BGA processor is installed, there is a possibility of a violation of the soldering of the contacts of its conclusions with the board (it is diagnosed by heating).
In cases where there is no tuning to the channels of on-air or cable television, you should make sure that the software is correct, as well as in accordance with the ratings of the supply voltage at the terminals of the NoName tuner. It is also necessary to check the presence of pulses of data exchange between the tuner and the processor via the I2C bus using an oscilloscope.
We recommend the owners of the STV-24LED6 TV for repair only to qualified specialists with the necessary work experience! Self-repair attempts without the appropriate knowledge and skills can lead to irreversible negative consequences!
Repair MainBoard

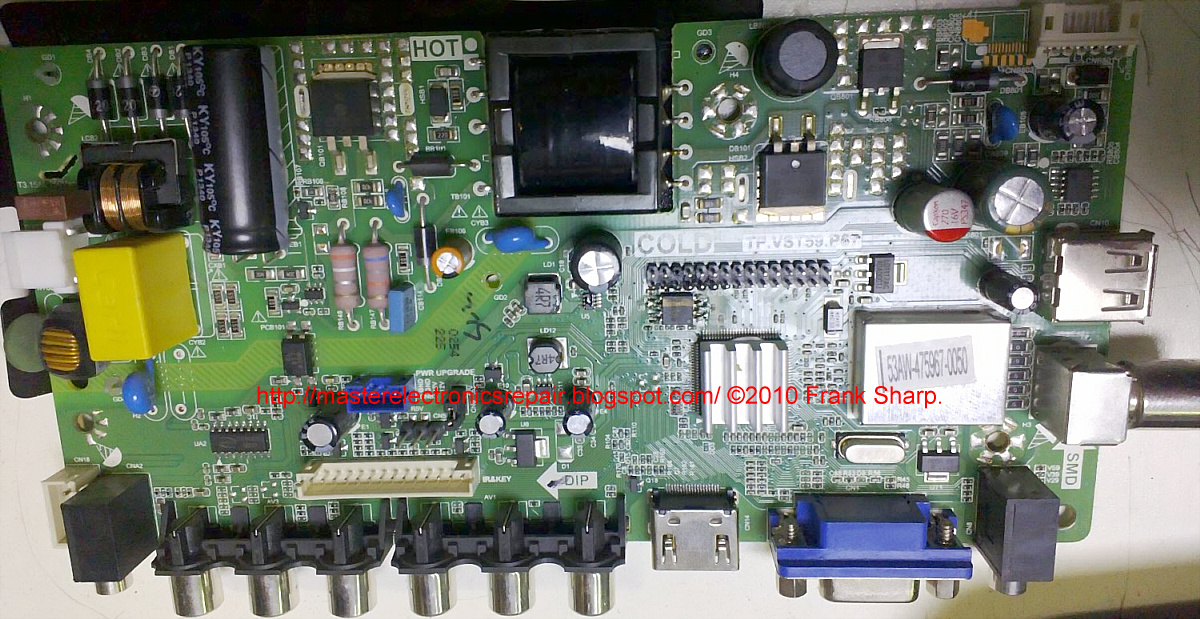

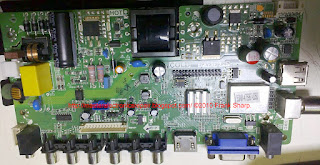

The appearance of MainBoard TP.VST59.P67 is shown in the figure below:
TP.VST59.P67
TP.VST59.P67 can be used in TVs:
Shivaki 22led6 (panel t215hvn010) -401).
Main features of the SHIVAKI STV-24LED6 device:
Installed matrix (LED-panel) V236BJ1-P01.
The matrix control uses the Timing Controller (T-CON) V236BJ1-XC01.
To power the backlight LEDs, a converter is used, combined with the TP.VST59.P67 main board, controlled by the OB3350CP PWM controller.
The power module is combined with the MainBoard and is made according to the flyback AC / DC voltage converter circuit using PWM SOT23-6 microcircuits and power switches of the MDF7N60B type.
MainBoard - the main board (motherboard) is a module TP.VST59.P6 7, using CPU chips: TSUMV59XE-Z1, SPI Flash: W25Q32FVSIG and others.
The NoName tuner provides television reception and channel tuning.
Additional technical information about the panel:
Brand: CHIMEI INNOLUX
Model: V236BJ1-P01
Type: a-Si TFT-LCD, CELL
Diagonal size: 23.6 inch
Resolution: 1366x768, WXGA
Display Mode: MVA, Normally Black, Transmissive
Active Area: 521.471x293.184 mm
Surface: Antiglare (Haze 1%), Hard coating (3H)
Glass Depth: 0.50 + 0.50 mm
Transmissivity: 5.5% (with Polarizer)
Contrast Ratio: 3000: 1
Display Colors: 16.7M (8-bit), CIE1931 72%
Response Time: 8.5 (G to G)
Frequency: 60Hz
Signal Interface: LVDS (1 ch, 8-bit), 30 pins
Voltage: 12.0V
TV SHIVAKI STV-24LED6 with LCD V236BJ1-P01, diagonal size 24 "(61 cm) 16: 9 format. The required brightness of the screen 250 cd / m² is provided by LED backlight LED. Contrast, as the ratio of maximum brightness to minimum, is 100: 1. Edge LED backlighting is implemented in the LED-panel of this TV - Edge LED. You can view images in high quality HD at a resolution of 1366x768 pixels in the standard of graphic decomposition 720p (HD Ready). The input high-frequency or video signal can be processed in analog systems . Max PAL, SECAM, NTSC Image processing and the formation of the digital signal is in 480i standards, 480p, 576i, 576p, 720p, 1080i Supported multimedia file formats:. MP3, WMA, MPEG4, Xvid, MKV, JPEG.
The power of the sound system 6 W (2x3 W) provide two speakers. The audio processing system NICAM STEREO is used.
The external interface (communication with other devices) is supported by standard input and output connectors: antenna input (RF), AV, audio x2, SCART, VGA, HDMI, USB. An output for connecting headphones is provided. To connect a computer or laptop to this TV model, a VGA (D-Sub 15) connector is used on the TV case, this interface supports resolutions: 640x480, 800x600, 1024x768, 1280x1024, 1360x768.
Overall dimensions: With a support 560x385x170 mm, Without a support 560x340x98 mm.
Attention! The panel V236BJ1-P01 of the SHIVAKI STV-24LED6 LED TV is an expensive and unreliable element.
Avoid any impact on the glass and pressure on the surface of the screen to avoid damage to the LED panel!
It is also unsafe to get liquid on the screen. Sometimes one drop is enough if it flows down the glass onto the cables so that the TV becomes unrepairable.
